Hydraulic
Welded Cylinders of Cross Tube Mount, 3000psi Max Pressure |
|
|
 |
|
|
☆
Tube---Precision
finished steel for extended seal & cylinder life |
|
☆
Tube Seal---O-ring with anti-extrusion backup washer |
|
☆
Rod---Hard chrome plated 1045 high strength steel for longer
cylinder life |
|
☆
Rod Seal---Polyurethane U-Cup
& Wiper and Wear Ring if necessary |
|
☆ Piston Seal---Glass
filled Teflon seal and nylon Wear Ring if necessary |
|
☆ Piston&Gland---Precision
machined ductile iron or steel
|
|
☆ End Cap---Durable
steel to support continuous high load |
|
☆ Rod End Tube--- Durable steel |
|
|
| |
|
|
|
|
|
|
|
Please feel free to |
|
Get in contact
for pricing |
|
|
|
For Details, see
CATALOGUE |
|
|
|
|
|
|
| |

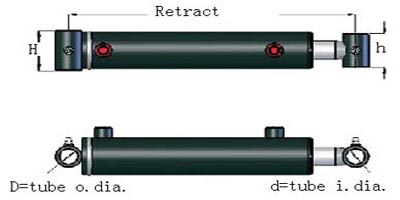

Dimensions in Inch
for Welded Cylinders with Cross Tube Mount of Bore: 1.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W1504T |
|
4.0 |
12.0 |
10 |
Tube Wall: |
0.19~0.25 |
| |
W1506T |
|
6.0 |
14.0 |
11 |
SAE04 Port: |
7/16-20 |
| |
W1508T |
|
8.0 |
16.0 |
12 |
H: |
2.25 |
| |
W1510T |
1.0 |
10.0 |
18.0 |
13 |
h: |
2.0 |
| |
W1512T |
|
12.0 |
20.0 |
14 |
D: |
1.25/1.5 |
| |
W1514T |
|
14.0 |
22.0 |
15 |
d: |
0.75/1.0 |
| |
W1516T |
|
16.0 |
24.0 |
16 |
Piston Width: |
app. 1.2 |
| |
W1518T |
|
18.0 |
26.0 |
17 |
Gland Width: |
app. 2.2 |
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Cross Tube Mount of Bore: 2.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W2004T |
|
4.0 |
12.0 |
12 |
|
|
| |
W2006T |
|
6.0 |
14.0 |
13.5 |
|
|
| |
W2008T |
|
8.0 |
16.0 |
15 |
|
|
| |
W2010T |
|
10.0 |
18.0 |
16.5 |
Tube Wall: |
0.19~0.25 |
| |
W2012T |
|
12.0 |
20.0 |
18 |
SAE06 Port: |
9/16-18 |
| |
W2014T |
|
14.0 |
22.0 |
19.5 |
H: |
2.75 |
| |
W2016T |
|
16.0 |
24.0 |
21.0 |
h: |
2.25 |
| |
W2018T |
|
18.0 |
26.0 |
22.5 |
D: |
1.5/1.75 |
| |
W2020T |
1.25 |
20.0 |
28.0 |
23 |
d: |
1.0 |
| |
W2024T |
|
24.0 |
32.0 |
26 |
Piston Width: |
app. 1.2 |
| |
W2028T |
|
28.0 |
36.0 |
29 |
Gland Width: |
app. 2.2 |
| |
W2030T |
|
30.0 |
38.0 |
30.5 |
|
|
| |
W2032T |
|
32.0 |
40.0 |
32 |
|
|
| |
W2036T |
|
36.0 |
44.0 |
35 |
|
|
| |
W2040T |
|
40.0 |
48.0 |
38 |
|
|
| |
W2048T |
|
48.0 |
56.0 |
44 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Cross Tube Mount of Bore: 2.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W2504T |
|
4.0 |
12.0 |
15 |
|
|
| |
W2506T |
|
6.0 |
14.0 |
17 |
|
|
| |
W2508T |
|
8.0 |
16.0 |
19 |
|
|
| |
W2510T |
|
10.0 |
18.0 |
21 |
Tube Wall: |
0.19~0.25 |
| |
W2512T |
|
12.0 |
20.0 |
23 |
SAE08 Port: |
3/4-16 |
| |
W2514T |
|
14.0 |
22.0 |
25 |
H: |
3.25 |
| |
W2516T |
|
16.0 |
24.0 |
27 |
h: |
2.25 |
| |
W2518T |
|
18.0 |
26.0 |
29 |
D: |
1.5/1.75 |
| |
W2520T |
1.5 |
20.0 |
28.0 |
31 |
d: |
1.0 |
| |
W2524T |
|
24.0 |
32.0 |
35 |
Piston Width: |
app. 1.2 |
| |
W2528T |
|
28.0 |
36.0 |
39 |
Gland Width: |
app. 2.2 |
| |
W2530T |
|
30.0 |
38.0 |
41 |
|
|
| |
W2532T |
|
32.0 |
40.0 |
43 |
|
|
| |
W2536T |
|
36.0 |
44.0 |
47 |
|
|
| |
W2540T |
|
40.0 |
48.0 |
51 |
|
|
| |
W2548T |
|
48.0 |
56.0 |
59 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube
Mount of Bore: 3.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W3004T |
|
4.0 |
12.0 |
19 |
|
|
| |
W3006T |
|
6.0 |
14.0 |
21.5 |
|
|
| |
W3008T |
|
8.0 |
16.0 |
24 |
|
|
| |
W3010T |
|
10.0 |
18.0 |
26.5 |
Tube Wall: |
0.19~0.25 |
| |
W3012T |
|
12.0 |
20.0 |
29 |
SAE08 Port: |
3/4-16 |
| |
W3014T |
|
14.0 |
22.0 |
31.5 |
H: |
3.75 |
| |
W3016T |
|
16.0 |
24.0 |
34 |
h: |
2.25 |
| |
W3018T |
|
18.0 |
26.0 |
36.5 |
D: |
1.5/1.75 |
| |
W3020T |
1.5 |
20.0 |
28.0 |
39 |
d: |
1.0 |
| |
W3024T |
|
24.0 |
32.0 |
44 |
Piston Width: |
app. 1.2 |
| |
W3028T |
|
28.0 |
36.0 |
49 |
Gland Width: |
app. 2.2 |
| |
W3030T |
|
30.0 |
38.0 |
51.5 |
|
|
| |
W3032T |
|
32.0 |
40.0 |
54 |
|
|
| |
W3036T |
|
36.0 |
44.0 |
59 |
|
|
| |
W3040T |
|
40.0 |
48.0 |
64 |
|
|
| |
W3048T |
|
48.0 |
56.0 |
74 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube
Mount of Bore: 3.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W3504T |
|
4.0 |
12.0 / 14.0 |
27 |
|
|
| |
W3506T |
|
6.0 |
14.0 / 16.0 |
30 |
|
|
| |
W3508T |
|
8.0 |
16.0 / 18.0 |
33 |
|
|
| |
W3510T |
|
10.0 |
18.0 / 20.0 |
36 |
Tube Wall: |
0.19~0.25 |
| |
W3512T |
|
12.0 |
20.0 / 22.0 |
39 |
SAE08 Port: |
3/4-16 |
| |
W3514T |
|
14.0 |
22.0 / 24.0 |
42 |
H: |
4.25 |
| |
W3516T |
|
16.0 |
24.0 / 26.0 |
45 |
h: |
2.25/2.5 |
| |
W3518T |
|
18.0 |
26.0 / 28.0 |
48 |
D: |
1.5/2.0 |
| |
W3520T |
1.5 / 1.75 |
20.0 |
28.0 / 30.0 |
51 |
d: |
1.0/1.25 |
| |
W3524T |
|
24.0 |
32.0 / 34.0 |
57 |
Piston Width: |
app. 1.35 |
| |
W3528T |
|
28.0 |
36.0 / 38.0 |
63 |
Gland Width: |
app. 2.35 |
| |
W3530T |
|
30.0 |
38.0 / 40.0 |
66 |
|
|
| |
W3532T |
|
32.0 |
40.0 / 42.0 |
69 |
|
|
| |
W3536T |
|
36.0 |
44.0 / 46.0 |
75 |
|
|
| |
W3540T |
|
40.0 |
48.0 / 50.0 |
81 |
|
|
| |
W3548T |
|
48.0 |
56.0 / 58.0 |
93 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube
Mount of Bore: 4.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W4004T |
|
4.0 |
13.0 / 14.0 |
38 |
|
|
| |
W4006T |
|
6.0 |
15.0 / 16.0 |
42 |
|
|
| |
W4008T |
|
8.0 |
17.0 / 18.0 |
46 |
|
|
| |
W4010T |
|
10.0 |
19.0 / 20.0 |
50 |
|
|
| |
W4012T |
|
12.0 |
21.0 / 22.0 |
54 |
|
|
| |
W4014T |
|
14.0 |
23.0 / 24.0 |
58 |
Tube Wall: |
0.25 |
| |
W4016T |
2.0 |
16.0 |
25.0 / 26.0 |
62 |
SAE08 Port: |
3/4-16 |
| |
W4018T |
|
18.0 |
27.0 / 28.0 |
66 |
H: |
4.75 |
| |
W4020T |
|
20.0 |
29.0 / 30.0 |
70 |
h: |
2.5/4.0 |
| |
W4024T |
|
24.0 |
33.0 / 34.0 |
78 |
D: |
2.0/2.5 |
| |
W4028T |
|
28.0 |
37.0 / 38.0 |
86 |
d: |
1.0~1.5 |
| |
W4030T |
|
30.0 |
39.0 / 40.0 |
90 |
Piston Width: |
app. 1.9 |
| |
W4032T |
|
32.0 |
41.0 / 42.0 |
94 |
Gland Width: |
app. 2.6 |
| |
W4036T |
|
36.0 |
45.0 / 46.0 |
102 |
|
|
| |
W4040T |
|
40.0 |
49.0 / 50.0 |
110 |
|
|
| |
W4048T |
|
48.0 |
57.0 / 58.0 |
126 |
|
|
| |
W4054T |
|
54.0 |
66.0 |
144 |
|
|
| |
W4060T |
2.25 |
60.0 |
73.0 |
158 |
|
|
| |
W4072T |
|
72.0 |
85.0 |
182 |
|
|
| |
W4084T |
|
84.0 |
99.0 |
210 |
|
|
| |
☆
A spacer is added on cylinder of 4.0" bore with stroke over
48.0" |
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube Mount of Bore: 4.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W4506T |
|
6.0 |
15.0 / 16.0 |
60 |
|
|
| |
W4508T |
|
8.0 |
17.0 / 18.0 |
64.5 |
|
|
| |
W4510T |
|
10.0 |
19.0 / 20.0 |
69 |
|
|
| |
W4512T |
|
12.0 |
21.0 / 22.0 |
73.5 |
|
|
| |
W4514T |
|
14.0 |
23.0 / 24.0 |
78 |
|
|
| |
W4516T |
|
16.0 |
25.0 / 26.0 |
82.5 |
Tube Wall: |
0.25 |
| |
W4518T |
|
18.0 |
27.0 / 28.0 |
87 |
SAE10 Port: |
7/8-14 |
| |
W4520T |
2.25 |
20.0 |
29.0 / 30.0 |
91.5 |
H: |
5.25 |
| |
W4524T |
|
24.0 |
33.0 / 34.0 |
100 |
h: |
3.0/4.0 |
| |
W4528T |
|
28.0 |
37.0 / 38.0 |
109 |
D: |
2.0/2.5 |
| |
W4530T |
|
30.0 |
39.0 / 40.0 |
113 |
d: |
1.0~1.5 |
| |
W4532T |
|
32.0 |
41.0 / 42.0 |
117 |
Piston Width: |
app. 1.9 |
| |
W4536T |
|
36.0 |
45.0 / 46.0 |
125 |
Gland Width: |
app. 2.6 |
| |
W4540T |
|
40.0 |
49.0 / 50.0 |
133 |
|
|
| |
W4548T |
|
48.0 |
58.0 / 59.0 |
150 |
|
|
| |
W4554T |
|
54.0 |
66.0 |
166 |
|
|
| |
W4560T |
2.5 |
60.0 |
73.0 |
180 |
|
|
| |
W4572T |
|
72.0 |
85.0 |
200 |
|
|
| |
☆
A spacer is added on cylinder of 4.5" bore with stroke over
48.0" |
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube Mount of Bore: 5.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W5006T |
|
6.0 |
17.0 / 18.0 |
70 |
|
|
| |
W5008T |
|
8.0 |
19.0 / 20.0 |
76 |
|
|
| |
W5010T |
|
10.0 |
21.0 / 22.0 |
82 |
|
|
| |
W5012T |
|
12.0 |
23.0 / 24.0 |
88 |
|
|
| |
W5014T |
|
14.0 |
25.0 / 26.0 |
94 |
|
|
| |
W5016T |
|
16.0 |
27.0 / 28.0 |
100 |
Tube Wall: |
0.25~0.37 |
| |
W5018T |
|
18.0 |
29.0 / 30.0 |
106 |
SAE12 Port: |
1 1/16-12 |
| |
W5020T |
|
20.0 |
31.0 / 32.0 |
112 |
H: |
6.0 |
| |
W5024T |
2.5 |
24.0 |
35.0 / 36.0 |
124 |
h: |
3.25/4.0 |
| |
W5028T |
|
28.0 |
39.0 / 40.0 |
136 |
D: |
2.5/3.0 |
| |
W5030T |
|
30.0 |
41.0 / 42.0 |
142 |
d: |
1.25~1.75 |
| |
W5032T |
|
32.0 |
43.0 / 44.0 |
148 |
Piston Width: |
app. 2.1 |
| |
W5036T |
|
36.0 |
47.0 / 48.0 |
160 |
Gland Width: |
app. 2.9 |
| |
W5040T |
|
40.0 |
51.0 / 52.0 |
172 |
|
|
| |
W5048T |
|
48.0 |
60.0 / 61.0 |
196 |
|
|
| |
W5054T |
|
54.0 |
68.0 |
216 |
|
|
| |
W5060T |
|
60.0 |
75.0 |
235 |
|
|
| |
W5072T |
|
72.0 |
89.0 |
270 |
|
|
| |
☆
A spacer is added on cylinder of 5.0" bore with stroke over
48.0" |
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube Mount of Bore: 5.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W5506T |
|
6.0 |
17.0 / 18.0 |
82 |
|
|
| |
W5508T |
|
8.0 |
19.0 / 20.0 |
88 |
|
|
| |
W5510T |
|
10.0 |
21.0 / 22.0 |
94 |
|
|
| |
W5512T |
|
12.0 |
23.0 / 24.0 |
100 |
|
|
| |
W5514T |
|
14.0 |
25.0 / 26.0 |
106 |
|
|
| |
W5516T |
|
16.0 |
27.0 / 28.0 |
112 |
Tube Wall: |
0.31~0.37 |
| |
W5518T |
|
18.0 |
29.0 / 30.0 |
118 |
NPTF Port: |
3/4 |
| |
W5520T |
|
20.0 |
31.0 / 32.0 |
124 |
H: |
6.5 |
| |
W5524T |
2.5 / 3.0 |
24.0 |
35.0 / 36.0 |
136 |
h: |
4.0/4.5 |
| |
W5528T |
|
28.0 |
39.0 / 40.0 |
148 |
D: |
2.5/3.0 |
| |
W5530T |
|
30.0 |
41.0 / 42.0 |
154 |
d: |
1.5~1.75 |
| |
W5532T |
|
32.0 |
43.0 / 44.0 |
160 |
Piston Width: |
app. 2.3 |
| |
W5536T |
|
36.0 |
47.0 / 48.0 |
172 |
Gland Width: |
app. 3.0 |
| |
W5540T |
|
40.0 |
51.0 / 52.0 |
184 |
|
|
| |
W5548T |
|
48.0 |
61.0 |
214 |
|
|
| |
W5554T |
|
54.0 |
68.0 |
235 |
|
|
| |
W5560T |
|
60.0 |
75.0 |
256 |
|
|
| |
W5572T |
|
72.0 |
89.0 |
298 |
|
|
| |
☆
A spacer is added on cylinder of 5.5" bore with stroke over
48.0" |
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube Mount of Bore: 6.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W6006T |
|
6.0 |
17.0 / 18.0 |
102 |
|
|
| |
W6008T |
|
8.0 |
19.0 / 20.0 |
110 |
|
|
| |
W6010T |
|
10.0 |
21.0 / 22.0 |
118 |
|
|
| |
W6012T |
|
12.0 |
23.0 / 24.0 |
126 |
|
|
| |
W6014T |
|
14.0 |
25.0 / 26.0 |
134 |
|
|
| |
W6016T |
|
16.0 |
27.0 / 28.0 |
142 |
Tube Wall: |
0.31~0.37 |
| |
W6018T |
|
18.0 |
29.0 / 30.0 |
150 |
NPTF Port: |
3/4 |
| |
W6020T |
|
20.0 |
31.0 / 32.0 |
158 |
H: |
6.75 / 7.0 |
| |
W6024T |
3.0 |
24.0 |
35.0 / 36.0 |
174 |
h: |
4.0/4.5 |
| |
W6028T |
|
28.0 |
39.0 / 40.0 |
190 |
D: |
2.5/3.0 |
| |
W6030T |
|
30.0 |
41.0 / 42.0 |
198 |
d: |
1.5~2.0 |
| |
W6032T |
|
32.0 |
43.0 / 44.0 |
206 |
Piston Width: |
app. 2.3 |
| |
W6036T |
|
36.0 |
47.0 / 48.0 |
222 |
Gland Width: |
app. 3.0 |
| |
W6040T |
|
40.0 |
51.0 / 52.0 |
238 |
|
|
| |
W6048T |
|
48.0 |
61.0 |
278 |
|
|
| |
W6054T |
|
54.0 |
68.0 |
306 |
|
|
| |
W6060T |
|
60.0 |
75.0 |
334 |
|
|
| |
W6072T |
|
72.0 |
89.0 |
390 |
|
|
| |
☆
A spacer is added on cylinder of 6.0" bore with stroke over
48.0" |
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube Mount of Bore: 7.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W7006T |
|
6.0 |
22.0 |
180 |
|
|
| |
W7008T |
|
8.0 |
24.0 |
190 |
|
|
| |
W7010T |
|
10.0 |
26.0 |
200 |
|
|
| |
W7012T |
|
12.0 |
28.0 |
210 |
Tube Wall: |
0.37 |
| |
W7014T |
|
14.0 |
30.0 |
220 |
NPTF Port: |
1 |
| |
W7016T |
|
16.0 |
32.0 |
230 |
H: |
8.0 |
| |
W7018T |
|
18.0 |
34.0 |
240 |
h: |
4.5/5.0 |
| |
W7020T |
|
20.0 |
36.0 |
250 |
D: |
3.5/4.0 |
| |
W7024T |
3.5 |
24.0 |
40.0 |
270 |
d: |
2.0/2.5 |
| |
W7028T |
|
28.0 |
44.0 |
290 |
Piston Width: |
app. 4.0 |
| |
W7030T |
|
30.0 |
46.0 |
300 |
Gland Width: |
app. 3.3 |
| |
W7032T |
|
32.0 |
48.0 |
310 |
|
|
| |
W7036T |
|
36.0 |
52.0 |
330 |
|
|
| |
W7040T |
|
40.0 |
56.0 |
350 |
|
|
| |
W7048T |
|
48.0 |
66.0 |
400 |
|
|
| |
W7054T |
|
54.0 |
73.0 |
435 |
|
|
| |
W7060T |
|
60.0 |
80.0 |
470 |
|
|
| |
☆
A spacer is added on cylinder of 7.0" bore with stroke over
48.0" |
|
|
| |
Dimensions in Inch
for Welded Cylinders with
Cross Tube Mount of Bore: 8.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W8006T |
|
6.0 |
22.0 |
226 |
|
|
| |
W8008T |
|
8.0 |
24.0 |
238 |
|
|
| |
W8010T |
|
10.0 |
26.0 |
250 |
|
|
| |
W8012T |
|
12.0 |
28.0 |
262 |
Tube Wall: |
0.37 |
| |
W8014T |
|
14.0 |
30.0 |
274 |
NPTF Port: |
1 |
| |
W8016T |
|
16.0 |
32.0 |
286 |
H: |
9.0 |
| |
W8018T |
|
18.0 |
34.0 |
298 |
h: |
5.0 |
| |
W8020T |
|
20.0 |
36.0 |
310 |
D: |
4.0/4.5 |
| |
W8024T |
4.0 |
24.0 |
40.0 |
334 |
d: |
2.5/3.0 |
| |
W8028T |
|
28.0 |
44.0 |
358 |
Piston Width: |
app. 4.0 |
| |
W8030T |
|
30.0 |
46.0 |
370 |
Gland Width: |
app. 3.3 |
| |
W8032T |
|
32.0 |
48.0 |
382 |
|
|
| |
W8036T |
|
36.0 |
52.0 |
406 |
|
|
| |
W8040T |
|
40.0 |
56.0 |
430 |
|
|
| |
W8048T |
|
48.0 |
66.0 |
490 |
|
|
| |
W8054T |
|
54.0 |
73.0 |
532 |
|
|
| |
W8060T |
|
60.0 |
80.0 |
573 |
|
|
| |
☆
A spacer is added on cylinder of 8.0" bore with stroke over
48.0" |
|
|
| |
|
|
|
☆
Customized sizes and colors are available on request |
! WARNING |
|
☆
Cylinder weight is for reference |
☆ Max
extension pressure shall be lower than full MAX
pressure
|
| |
|
|
as stroke become longer |
|
☆
Delivery (exwork) for
first order: 4~6weeks |
|
|
☆
Delivery (exwork) for
repeated order: 2~4weeks |
|
