Hydraulic
Welded Cylinders of Clevis Mount, 3000psi Max Pressure |
|
|
 |
|
|
☆
Tube---Precision
finished steel for extended seal & cylinder life |
|
☆
Tube Seal---O-ring with anti-extrusion backup washer |
|
☆
Rod---Hard chrome plated 1045 high strength steel for longer
cylinder life |
|
☆
Rod Seal---Polyurethane U-Cup
& Wiper and Wear Ring if necessary |
|
☆ Piston Seal---Glass
filled Teflon seal and nylon Wear Ring if necessary |
|
☆ Piston&Gland---Precision
machined ductile iron or steel |
|
☆ End Cap---Cast
steel or round steel with lugs welded on for high load |
|
☆ Rod End Clevis---Cast
steel or steel or threaded cast iron rod end clevis |
|
|
| |
Please feel free to
Get in contact
for pricing
For Details, see
CATALOGUE |
|
| |

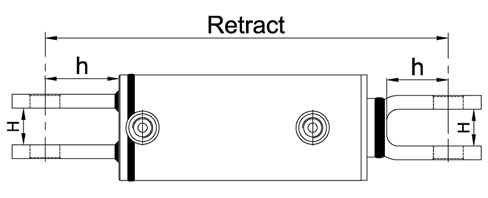

Dimensions in Inch
for Welded Cylinders with Clevis Mount of Bore: 1.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W1504C |
|
4.0 |
14.25 |
9 |
|
|
| |
W1506C |
|
6.0 |
16.25 |
10 |
Tube Wall: |
0.19 |
| |
W1508C |
|
8.0 |
18.25 |
11 |
SAE06 Port: |
9/16-18 |
| |
W1510C |
|
10.0 |
20.25 |
12 |
Pin Dia.: |
0.75 |
| |
W1512C |
0.75 |
12.0 |
22.25 |
13 |
H: |
0.8 |
| |
W1514C |
|
14.0 |
24.25 |
14 |
h: |
2.125 |
| |
W1516C |
|
16.0 |
26.25 |
15 |
Piston Width: |
app. 1.2 |
| |
W1518C |
|
18.0 |
28.25 |
16 |
Gland Width: |
app. 2.2 |
| |
W1520C |
|
20.0 |
30.25 |
17 |
|
|
| |
W1508C-ASAE |
|
8.0 |
20.25 |
12 |
|
|
| |
W1516C-ASAE |
|
16.0 |
31.50 |
17 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Clevis Mount of Bore: 2.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W2004C |
|
4.0 |
14.25 |
16 |
|
|
| |
W2006C |
|
6.0 |
16.25 |
17 |
|
|
| |
W2008C |
|
8.0 |
18.25 |
18 |
|
|
| |
W2010C |
|
10.0 |
20.25 |
20 |
|
|
| |
W2012C |
|
12.0 |
22.25 |
21 |
|
|
| |
W2014C |
|
14.0 |
24.25 |
22 |
Tube Wall: |
0.19 |
| |
W2016C |
|
16.0 |
26.25 |
23 |
SAE08 Port: |
3/4-16 |
| |
W2018C |
|
18.0 |
28.25 |
25 |
Pin Dia.: |
1.0 |
| |
W2020C |
1.13 |
20.0 |
30.25 |
27 |
H: |
1.125 |
| |
W2024C |
|
24.0 |
34.25 |
30 |
h: |
2.125 |
| |
W2028C |
|
28.0 |
38.25 |
33 |
Piston Width: |
app. 1.2 |
| |
W2030C |
|
30.0 |
40.25 |
34 |
Gland Width: |
app. 2.2 |
| |
W2032C |
|
32.0 |
42.25 |
36 |
|
|
| |
W2034C |
|
34.0 |
44.25 |
38 |
|
|
| |
W2036C |
|
36.0 |
46.25 |
40 |
|
|
| |
W2008C-ASAE |
|
8.0 |
20.25 |
19 |
|
|
| |
W2016C-ASAE |
|
16.0 |
31.25 |
26 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Clevis Mount of Bore: 2.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W2504C |
|
4.0 |
14.25 |
17 |
|
|
| |
W2506C |
|
6.0 |
16.25 |
18 |
|
|
| |
W2508C |
|
8.0 |
18.25 |
19 |
|
|
| |
W2510C |
|
10.0 |
20.25 |
21 |
|
|
| |
W2512C |
|
12.0 |
22.25 |
23 |
|
|
| |
W2514C |
|
14.0 |
24.25 |
25 |
Tube Wall: |
0.19 |
| |
W2516C |
|
16.0 |
26.25 |
27 |
SAE08 Port: |
3/4-16 |
| |
W2518C |
|
18.0 |
28.25 |
29 |
Pin Dia.: |
1.0 |
| |
W2520C |
1.25 |
20.0 |
30.25 |
31 |
H: |
1.125 |
| |
W2524C |
|
24.0 |
34.25 |
35 |
h: |
2.125 |
| |
W2528C |
|
28.0 |
38.25 |
39 |
Piston Width: |
app. 1.25 |
| |
W2530C |
|
30.0 |
40.25 |
41 |
Gland Width: |
app. 2.2 |
| |
W2532C |
|
32.0 |
42.25 |
43 |
|
|
| |
W2536C |
|
36.0 |
46.25 |
47 |
|
|
| |
W2548C |
|
48.0 |
58.25 |
58 |
|
|
| |
W2508C-ASAE |
|
8.0 |
20.25 |
21 |
|
|
| |
W2516C-ASAE |
|
16.0 |
31.25 |
32 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Clevis Mount of Bore: 3.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W3004C |
|
4.0 |
14.25 |
22 |
|
|
| |
W3006C |
|
6.0 |
16.25 |
24 |
|
|
| |
W3008C |
|
8.0 |
18.25 |
26 |
|
|
| |
W3010C |
|
10.0 |
20.25 |
28 |
|
|
| |
W3012C |
|
12.0 |
22.25 |
30 |
|
|
| |
W3014C |
|
14.0 |
24.25 |
32 |
Tube Wall: |
0.19~0.25 |
| |
W3016C |
|
16.0 |
26.25 |
34 |
SAE08 Port: |
3/4-16 |
| |
W3018C |
|
18.0 |
28.25 |
36 |
Pin Dia.: |
1.0 |
| |
W3020C |
1.50 |
20.0 |
30.25 |
38 |
H: |
1.125 |
| |
W3024C |
|
24.0 |
34.25 |
43 |
h: |
2.125 |
| |
W3028C |
|
28.0 |
38.25 |
48 |
Piston Width: |
app. 1.25 |
| |
W3030C |
|
30.0 |
40.25 |
50 |
Gland Width: |
app. 2.2 |
| |
W3032C |
|
32.0 |
42.25 |
52 |
|
|
| |
W3036C |
|
36.0 |
46.25 |
57 |
|
|
| |
W3048C |
|
48.0 |
58.25 |
71 |
|
|
| |
W3008C-ASAE |
|
8.0 |
20.25 |
28 |
|
|
| |
W3016C-ASAE |
|
16.0 |
31.25 |
39 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Clevis Mount of Bore: 3.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W3504C |
|
4.0 |
14.25 |
31 |
|
|
| |
W3506C |
|
6.0 |
16.25 |
34 |
|
|
| |
W3508C |
|
8.0 |
18.25 |
37 |
|
|
| |
W3510C |
|
10.0 |
20.25 |
40 |
|
|
| |
W3512C |
|
12.0 |
22.25 |
43 |
|
|
| |
W3514C |
|
14.0 |
24.25 |
46 |
Tube Wall: |
0.19~0.25 |
| |
W3516C |
|
16.0 |
26.25 |
49 |
SAE08 Port: |
3/4-16 |
| |
W3518C |
|
18.0 |
28.25 |
52 |
Pin Dia.: |
1.0/1.25 |
| |
W3520C |
1.75 |
20.0 |
30.25 |
55 |
H: |
1.125 |
| |
W3524C |
|
24.0 |
34.25 |
61 |
h: |
2.0 |
| |
W3528C |
|
28.0 |
38.25 |
67 |
Piston Width: |
app. 1.5 |
| |
W3530C |
|
30.0 |
40.25 |
70 |
Gland Width: |
app. 2.3 |
| |
W3532C |
|
32.0 |
42.25 |
73 |
|
|
| |
W3536C |
|
36.0 |
46.25 |
79 |
|
|
| |
W3548C |
|
48.0 |
58.25 |
97 |
|
|
| |
W3508C-ASAE |
|
8.0 |
20.25 |
39 |
|
|
| |
W3516C-ASAE |
|
16.0 |
31.25 |
53 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Clevis Mount of Bore: 4.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W4004C |
|
4.0 |
14.25 |
46 |
|
|
| |
W4006C |
|
6.0 |
16.25 |
50 |
|
|
| |
W4008C |
|
8.0 |
18.25 |
54 |
|
|
| |
W4010C |
|
10.0 |
20.25 |
58 |
|
|
| |
W4012C |
|
12.0 |
22.25 |
62 |
|
|
| |
W4014C |
|
14.0 |
24.25 |
66 |
Tube Wall: |
0.25~0.31 |
| |
W4016C |
|
16.0 |
26.25 |
70 |
SAE08 Port: |
3/4-16 |
| |
W4018C |
|
18.0 |
28.25 |
74 |
Pin Dia.: |
1.0/1.25/1.5 |
| |
W4020C |
2.00 |
20.0 |
30.25 |
78 |
H: |
1.625 |
| |
W4024C |
|
24.0 |
34.25 |
86 |
h: |
1.75 |
| |
W4028C |
|
28.0 |
38.25 |
94 |
Piston Width: |
app. 1.8 |
| |
W4030C |
|
30.0 |
40.25 |
98 |
Gland Width: |
app. 2.4 |
| |
W4032C |
|
32.0 |
42.25 |
102 |
|
|
| |
W4036C |
|
36.0 |
46.25 |
110 |
|
|
| |
W4048C |
|
48.0 |
58.25 |
134 |
|
|
| |
W4008C-ASAE |
|
8.0 |
20.25 |
57 |
|
|
| |
W4016C-ASAE |
|
16.0 |
31.25 |
76 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Welded Cylinders with Clevis Mount of Bore: 5.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
W5004C |
|
4.0 |
16.25/19.75 |
75/79 |
|
|
| |
W5006C |
|
6.0 |
18.25/21.75 |
81/85 |
|
|
| |
W5008C |
|
8.0 |
20.25/23.75 |
87/91 |
|
|
| |
W5010C |
|
10.0 |
22.25/25.75 |
93/97 |
Tube Wall: |
0.25~0.37 |
| |
W5012C |
|
12.0 |
24.25/27.75 |
99/103 |
SAE12 Port: |
1 1/16-12 |
| |
W5014C |
|
14.0 |
26.25/29.75 |
105/109 |
Pin Dia.: |
1.25/1.5/2.0 |
| |
W5016C |
2.50 |
16.0 |
28.25/31.75 |
110/114 |
H: |
1.25~2.125 |
| |
W5018C |
|
18.0 |
30.25/33.75 |
115/119 |
h: |
2.0~3.5 |
| |
W5020C |
|
20.0 |
32.25/35.75 |
121/125 |
Piston Width: |
app. 2.1 |
| |
W5024C |
|
24.0 |
36.25/39.75 |
132/136 |
Gland Width: |
app. 2.7 |
| |
W5028C |
|
28.0 |
40.25/43.75 |
143/147 |
|
|
| |
W5030C |
|
30.0 |
42.25/45.75 |
149/153 |
|
|
| |
W5032C |
|
32.0 |
44.25/47.75 |
155/159 |
|
|
| |
W5036C |
|
36.0 |
48.25/51.75 |
166/170 |
|
|
| |
W5048C |
|
48.0 |
60.25/63.75 |
199/203 |
|
|
| |
|
|
|
|
|
|
|
| |
☆
Threaded Rod End Clevis available on request |
|
|
☆
Customized sizes and colors are available on request |
|
|
☆
Cylinder weight is for reference |
|
| |
|
|
☆
Delivery (exwork) for
first order: 4~6weeks |
|
|
☆
Delivery (exwork) for
repeated order: 2~4weeks |
|
|
|
