Hydraulic
Tie Rod Cylinders, 3000psi Max Pressure Series |
|
|
 |
☆
Tube---Precision
finished steel for extended seal & cylinder life |
|
☆
Tube Seal---O-ring with anti-extrusion backup washer |
|
☆
Rod---Hard chrome plated 1045 high strength steel for longer
cylinder life |
|
☆
Rod Seal---Polyurethane
U-Cup & Wiper of nitrite rubber |
|
☆ Piston---Precision
machined ductile iron
with malleable bearing surface |
|
☆ Piston Seal---Glass
filled Teflon piston seal with nylon wear ring if needed |
|
☆ Gland
(Rod Cap)---High grade ductile iron with drilled oil passages |
|
☆ End Cap---High
grade ductile iron with drilled oil passages and side port |
|
☆ Rod End Clevis---Ductile
iron with set screw locking device |
|
|
| |
|
|
|
|
|
|
|
Please feel free to |
|
Get in contact
for pricing |
|
|
|
For Details, see
CATALOGUE
please. |
|
|
|
|
|
|
| |

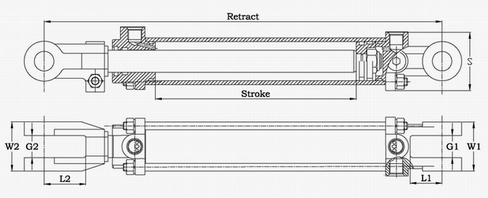

Dimensions in Inch
for Bore of 2.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
3T2004 |
|
4.0 |
14.25 |
17 |
|
|
| |
3T2006 |
|
6.0 |
16.25 |
18 |
Tube Wall: |
0.19 |
| |
3T2008 |
|
8.0 |
18.25 |
19 |
SAE#8 Port: |
3/4-16 |
| |
3T2010 |
|
10.0 |
20.25 |
21 |
Pin Dia.: |
1.0 |
| |
3T2012 |
|
12.0 |
22.25 |
22 |
L1: |
2.06 |
| |
3T2014 |
|
14.0 |
24.25 |
24 |
L2: |
2.13 |
| |
3T2016 |
1.13 |
16.0 |
26.25 |
25 |
S: |
2.88 |
| |
3T2018 |
|
18.0 |
28.25 |
26 |
W1: |
2.5 |
| |
3T2020 |
|
20.0 |
30.25 |
28 |
G1: |
1.13 |
| |
3T2024 |
|
24.0 |
34.25 |
31 |
W2: |
2.5 |
| |
3T2030 |
|
30.0 |
40.25 |
35 |
G2: |
1.13 |
| |
3T2036 |
|
36.0 |
46.25 |
39 |
Piston Width: |
app. 1.0 |
| |
3T2008-ASAE |
|
8.0 |
20.25 |
20 |
Gland Width: |
app. 1.9 |
| |
3T2016-ASAE |
|
16.0 |
31.5 |
28 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 2.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
3T2504 |
|
4.0 |
14.25 |
18 |
|
|
| |
3T2506 |
|
6.0 |
16.25 |
19 |
Tube Wall: |
0.19 |
| |
3T2508 |
1.13 |
8.0 |
18.25 |
21 |
SAE#8 Port: |
3/4-16 |
| |
3T2510 |
|
10.0 |
20.25 |
22 |
Pin Dia.: |
1.0 |
| |
3T2512 |
|
12.0 |
22.25 |
24 |
L1: |
2.06 |
| |
3T2514 |
|
14.0 |
24.25 |
28 |
L2: |
2.13 |
| |
3T2516 |
|
16.0 |
26.25 |
30 |
S: |
3.13 |
| |
3T2518 |
|
18.0 |
28.25 |
32 |
W1: |
2.5 |
| |
3T2520 |
1.25 |
20.0 |
30.25 |
34 |
G1: |
1.13 |
| |
3T2524 |
|
24.0 |
34.25 |
38 |
W2: |
2.5 |
| |
3T2530 |
|
30.0 |
40.25 |
45 |
G2: |
1.13 |
| |
3T2536 |
|
36.0 |
46.25 |
51 |
Piston Width: |
app. 1.0 |
| |
3T2508-ASAE |
1.13 |
8.0 |
20.25 |
23 |
Gland Width: |
app. 1.9 |
| |
3T2516-ASAE |
1.25 |
16.0 |
31.5 |
34 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 3.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
3T3004 |
|
4.0 |
14.25 |
23 |
|
|
| |
3T3006 |
|
6.0 |
16.25 |
25 |
Tube Wall: |
0.19 |
| |
3T3008 |
|
8.0 |
18.25 |
28 |
SAE#8 Port: |
3/4-16 |
| |
3T3010 |
1.25 |
10.0 |
20.25 |
30 |
Pin Dia.: |
1.0 |
| |
3T3012 |
|
12.0 |
22.25 |
33 |
L1: |
2.06 |
| |
3T3014 |
|
14.0 |
24.25 |
35 |
L2: |
2.13 |
| |
3T3016 |
|
16.0 |
26.25 |
37 |
S: |
3.75 |
| |
3T3018 |
|
18.0 |
28.25 |
39 |
W1: |
2.5 |
| |
3T3020 |
|
20.0 |
30.25 |
43 |
G1: |
1.13 |
| |
3T3024 |
|
24.0 |
34.25 |
48 |
W2: |
2.63 |
| |
3T3030 |
1.5 |
30.0 |
40.25 |
56 |
G2: |
1.13 |
| |
3T3036 |
|
36.0 |
46.25 |
63 |
Piston Width: |
app. 1.0 |
| |
3T3048 |
|
48.0 |
58.25 |
78 |
Gland Width: |
app. 1.9 |
| |
3T3008-ASAE |
1.25 |
8.0 |
20.25 |
29 |
|
|
| |
3T3016-ASAE |
1.5 |
16.0 |
31.5 |
43 |
Pin Dia.: 1.25" |
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 3.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
3T3504 |
|
4.0 |
14.25 |
27 |
|
|
| |
3T3506 |
|
6.0 |
16.25 |
30 |
Tube Wall: |
0.19 |
| |
3T3508 |
1.25 |
8.0 |
18.25 |
33 |
SAE#8 Port: |
3/4-16 |
| |
3T3510 |
|
10.0 |
20.25 |
35 |
Pin Dia.: |
1.0 |
| |
3T3512 |
|
12.0 |
22.25 |
39 |
L1: |
2.06 |
| |
3T3514 |
|
14.0 |
24.25 |
42 |
L2: |
2.13 |
| |
3T3516 |
|
16.0 |
26.25 |
45 |
S: |
4.5 |
| |
3T3518 |
|
18.0 |
28.25 |
48 |
W1: |
2.63 |
| |
3T3520 |
1.5 |
20.0 |
30.25 |
51 |
G1: |
1.13 |
| |
3T3524 |
|
24.0 |
34.25 |
57 |
W2: |
2.63 |
| |
3T3530 |
|
30.0 |
40.25 |
65 |
G2: |
1.13 |
| |
3T3536 |
|
36.0 |
46.25 |
73 |
Piston Width: |
app. 1.0 |
| |
3T3548 |
|
48.0 |
58.25 |
89 |
Gland Width: |
app. 1.9 |
| |
3T3508-ASAE |
1.25 |
8.0 |
20.25 |
39 |
|
|
| |
3T3516-ASAE |
1.5 |
16.0 |
31.5 |
52 |
Pin Dia.:1.25" |
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 4.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
3T4004 |
|
4.0 |
14.25 |
37 |
|
|
| |
3T4006 |
|
6.0 |
16.25 |
40 |
Tube Wall: |
0.19 |
| |
3T4008 |
1.5 |
8.0 |
18.25 |
43 |
SAE#8 Port: |
3/4-16 |
| |
3T4010 |
|
10.0 |
20.25 |
46 |
Pin Dia.: |
1.0 |
| |
3T4012 |
|
12.0 |
22.25 |
49 |
L1: |
2.0 |
| |
3T4014 |
|
14.0 |
24.25 |
55 |
L2: |
2.0 |
| |
3T4016 |
|
16.0 |
26.25 |
59 |
S: |
5.13 |
| |
3T4018 |
1.75 |
18.0 |
28.25 |
63 |
W1: |
2.63 |
| |
3T4020 |
|
20.0 |
30.25 |
67 |
G1: |
1.13 |
| |
3T4024-175 |
|
24.0 |
34.25 |
74 |
W2: |
2.63 |
| |
3T4024-200 |
|
24.0 |
34.25 |
83 |
G2: |
1.13 |
| |
3T4030 |
2.0 |
30.0 |
40.25 |
95 |
Piston Width: |
app. 1.1 |
| |
3T4036 |
|
36.0 |
46.25 |
106 |
Gland Width: |
app. 1.92 |
| |
3T4048 |
|
48.0 |
58.25 |
127 |
|
|
| |
3T4008-ASAE |
1.5 |
8.0 |
20.25 |
46 |
|
|
| |
3T4016-ASAE |
1.75 |
16.0 |
31.5 |
62 |
Pin Dia.: 1.25" |
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 5.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
3T5004 |
|
4.0 |
16.25 |
63 |
|
|
| |
3T5006 |
|
6.0 |
18.25 |
68 |
Tube Wall: |
0.25 |
| |
3T5008 |
|
8.0 |
20.25 |
73 |
SAE#8 Port: |
3/4-16 |
| |
3T5010 |
|
10.0 |
22.25 |
78 |
Pin Dia.: |
1.25 |
| |
3T5012 |
|
12.0 |
24.25 |
83 |
L1: |
2.2 |
| |
3T5014 |
|
14.0 |
26.25 |
88 |
L2: |
2.1 |
| |
3T5016 |
2.0 |
16.0 |
28.25 |
93 |
S: |
6.0 |
| |
3T5018 |
|
18.0 |
30.25 |
98 |
W1: |
3.0 |
| |
3T5020 |
|
20.0 |
32.25 |
103 |
G1: |
1.25 |
| |
3T5024 |
|
24.0 |
36.25 |
113 |
W2: |
3.5 |
| |
3T5028 |
|
28.0 |
40.25 |
123 |
G2: |
1.25 |
| |
3T5030 |
|
30.0 |
42.25 |
128 |
Piston Width: |
app. 1.4 |
| |
3T5036 |
|
36.0 |
48.25 |
143 |
Gland Width: |
app. 2.5 |
| |
3T5048 |
|
48.0 |
60.25 |
172 |
|
|
| |
3T5016-ASAE |
|
16.0 |
31.5 |
98 |
|
|
| |
|
! WARNING |
|
☆
Customized sizes and colors are available on request |
☆
Please
note that the max capacities of clevis pins are |
|
☆
Cylinder weight is for reference |
PIN DIA.: 1.0￣ = 26000Lbs PIN DIA.: 1.25￣ = 39000Lbs |
| |
|
|
PIN DIA.:
1.5￣ = 56000Lbs PIN DIA.: 2.0￣ = 96000Lbs |
|
☆
Delivery (exwork) for
first order: 4~6weeks |
☆ Max
extension pressure shall be lower than full MAX
pressure |
|
☆
Delivery (exwork) for
repeated order: 2~4weeks |
as stroke become longer |
