Hydraulic
Tie Rod Cylinders, 2500psi Max Pressure Series |
|
|
 |
☆
Tube---Precision
finished steel for extended seal & cylinder life |
|
☆
Tube Seal---O-ring with anti-extrusion backup washer |
|
☆
Rod---Hard chrome plated 1045 high strength steel for longer
cylinder life |
|
☆
Rod Seal---Polyurethane
U-Cup & Wiper of nitrite rubber |
|
☆ Piston---Precision
machined ductile iron
with malleable bearing surface |
|
☆ Piston Seal---O-ring
with anti-extrusion backup washer |
|
☆ Gland
(Rod Cap)---High grade ductile iron with drilled oil passages |
|
☆ End Cap---High
grade ductile iron with drilled oil passages and side port |
|
☆ Rod End Clevis---Ductile
iron with set screw locking device |
|
|
|
|
|
|
|
|
|
|
|
Please feel free to |
|
Get in contact
for pricing |
|
|
|
For Details, see
CATALOGUE
please. |
|
|
|
|
|
|
| |

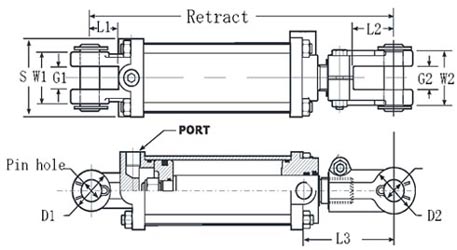

Dimensions in Inch
for Bore of 2.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
2T2004 |
|
4.0 |
14.25 |
17 |
|
|
| |
2T2006 |
|
6.0 |
16.25 |
18 |
Tube Wall: |
0.19 |
| |
2T2008 |
|
8.0 |
18.25 |
19 |
NPTF Port: |
3/8 |
| |
2T2010 |
|
10.0 |
20.25 |
21 |
Pin Dia.: |
1.0 |
| |
2T2012 |
|
12.0 |
22.25 |
22 |
L1: |
2.06 |
| |
2T2014 |
|
14.0 |
24.25 |
24 |
L2: |
2.13 |
| |
2T2016 |
1.13 |
16.0 |
26.25 |
25 |
S: |
2.88 |
| |
2T2018 |
|
18.0 |
28.25 |
26 |
W1: |
2.5 |
| |
2T2020 |
|
20.0 |
30.25 |
28 |
G1: |
1.13 |
| |
2T2024 |
|
24.0 |
34.25 |
31 |
W2: |
2.5 |
| |
2T2030 |
|
30.0 |
40.25 |
35 |
G2: |
1.13 |
| |
2T2036 |
|
36.0 |
46.25 |
39 |
Piston Width: |
app. 1.0 |
| |
2T2008-ASAE |
|
8.0 |
20.25 |
20 |
Gland Width: |
app. 1.9 |
| |
2T2016-ASAE |
|
16.0 |
31.5 |
28 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 2.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
2T2504 |
|
4.0 |
14.25 |
18 |
|
|
| |
2T2506 |
|
6.0 |
16.25 |
19 |
Tube Wall: |
0.19 |
| |
2T2508 |
|
8.0 |
18.25 |
20 |
NPTF Port: |
3/8 |
| |
2T2510 |
|
10.0 |
20.25 |
22 |
Pin Dia.: |
1.0 |
| |
2T2512 |
|
12.0 |
22.25 |
24 |
L1: |
2.06 |
| |
2T2514 |
1.13 |
14.0 |
24.25 |
26 |
L2: |
2.13 |
| |
2T2516 |
|
16.0 |
26.25 |
28 |
S: |
3.1 |
| |
2T2518 |
|
18.0 |
28.25 |
30 |
W1: |
2.5 |
| |
2T2520 |
|
20.0 |
30.25 |
32 |
G1: |
1.13 |
| |
2T2524 |
|
24.0 |
34.25 |
35 |
W2: |
2.5 |
| |
2T2530 |
1.25 |
30.0 |
40.25 |
45 |
G2: |
1.13 |
| |
2T2536 |
36.0 |
46.25 |
55 |
Piston Width: |
app. 1.0 |
| |
2T2508-ASAE |
1.13 |
8.0 |
20.25 |
22 |
Gland Width: |
app. 1.9 |
| |
2T2516-ASAE |
16.0 |
31.5 |
32 |
|
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 3.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
2T3004 |
|
4.0 |
14.25 |
23 |
|
|
| |
2T3006 |
|
6.0 |
16.25 |
25 |
Tube Wall: |
0.19 |
| |
2T3008 |
|
8.0 |
18.25 |
27 |
NPTF Port: |
1/2 |
| |
2T3010 |
|
10.0 |
20.25 |
29 |
Pin Dia.: |
1.0 |
| |
2T3012 |
|
12.0 |
22.25 |
31 |
L1: |
2.06 |
| |
2T3014 |
1.25 |
14.0 |
24.25 |
33 |
L2: |
2.13 |
| |
2T3016 |
|
16.0 |
26.25 |
35 |
S: |
3.7 |
| |
2T3018 |
|
18.0 |
28.25 |
37 |
W1: |
2.5 |
| |
2T3020 |
|
20.0 |
30.25 |
39 |
G1: |
1.13 |
| |
2T3024 |
|
24.0 |
34.25 |
43 |
W2: |
2.62 |
| |
2T3030 |
1.5 |
30.0 |
40.25 |
56 |
G2: |
1.13 |
| |
2T3036 |
36.0 |
46.25 |
63 |
Piston Width: |
app. 1.0 |
| |
2T3008-ASAE |
1.25 |
8.0 |
20.25 |
28 |
Gland Width: |
app. 1.9 |
| |
2T3016-ASAE |
1.5 |
16.0 |
31.5 |
41 |
Pin Dia.: 1.25" |
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 3.5" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
2T3504 |
|
4.0 |
14.25 |
25 |
|
|
| |
2T3506 |
|
6.0 |
16.25 |
27 |
Tube Wall: |
0.19 |
| |
2T3508 |
|
8.0 |
18.25 |
29 |
NPTF Port: |
1/2 |
| |
2T3510 |
|
10.0 |
20.25 |
31 |
Pin Dia.: |
1.0 |
| |
2T3512 |
1.25 |
12.0 |
22.25 |
33 |
L1: |
2.06 |
| |
2T3514 |
|
14.0 |
24.25 |
35 |
L2: |
2.13 |
| |
2T3516 |
|
16.0 |
26.25 |
37 |
S: |
4.5 |
| |
2T3518 |
|
18.0 |
28.25 |
39 |
W1: |
2.5 |
| |
2T3520 |
|
20.0 |
30.25 |
41 |
G1: |
1.13 |
| |
2T3524 |
1.5 |
24.0 |
34.25 |
51 |
W2: |
2.62 |
| |
2T3530 |
30.0 |
40.25 |
61 |
G2: |
1.13 |
| |
2T3536 |
36.0 |
46.25 |
70 |
Piston Width: |
app. 1.0 |
| |
2T3508-ASAE |
1.25 |
8.0 |
20.25 |
31 |
Gland Width: |
app. 1.9 |
| |
2T3516-ASAE |
1.5 |
16.0 |
31.5 |
43 |
Pin Dia.: 1.25" |
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 4.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
2T4004 |
|
4.0 |
14.25 |
35 |
|
|
| |
2T4006 |
|
6.0 |
16.25 |
38 |
Tube Wall: |
0.19 |
| |
2T4008 |
|
8.0 |
18.25 |
41 |
NPTF Port: |
1/2 |
| |
2T4010 |
1.25 |
10.0 |
20.25 |
43 |
Pin Dia.: |
1.0 |
| |
2T4012 |
|
12.0 |
22.25 |
45 |
L1: |
2.06 |
| |
2T4014 |
|
14.0 |
24.25 |
47 |
L2: |
2.13 |
| |
2T4016 |
|
16.0 |
26.25 |
50 |
S: |
5.12 |
| |
2T4018 |
1.5 |
18.0 |
28.25 |
55 |
W1: |
2.63 |
| |
2T4020 |
20.0 |
30.25 |
59 |
G1: |
1.13 |
| |
2T4024-175 |
1.75 |
24.0 |
34.25 |
69 |
W2: |
2.63 |
| |
2T4024-200 |
2.0 |
24.0 |
34.25 |
80 |
G2: |
1.13 |
| |
2T4030 |
30.0 |
40.25 |
90 |
Piston Width: |
app. 1.1 |
| |
2T4036 |
36.0 |
46.25 |
100 |
Gland Width: |
app. 1.9 |
| |
2T4048 |
48.0 |
58.25 |
120 |
|
|
| |
2T4008-ASAE |
1.5 |
8.0 |
20.25 |
43 |
|
|
| |
2T4016-ASAE |
1.75 |
16.0 |
31.5 |
59 |
Pin Dia.: 1.25" |
|
| |
|
|
|
|
|
|
|
| |
Dimensions in Inch
for Bore of 5.0" |
| |
Item |
Rod |
Stroke |
Retract |
Wt. (lbs) |
Other Dimensions (inch) |
| |
2T5004 |
|
4.0 |
16.25 |
51 |
|
|
| |
2T5006 |
|
6.0 |
18.25 |
56 |
Tube Wall: |
0.25 |
| |
2T5008 |
|
8.0 |
20.25 |
61 |
NPTF Port: |
1/2 |
| |
2T5010 |
|
10.0 |
22.25 |
66 |
Pin Dia.: |
1.25 |
| |
2T5012 |
|
12.0 |
24.25 |
71 |
L1: |
2.25 |
| |
2T5014 |
|
14.0 |
26.25 |
76 |
L2: |
2.13 |
| |
2T5016 |
2.0 |
16.0 |
28.25 |
81 |
S: |
6.0 |
| |
2T5018 |
|
18.0 |
30.25 |
86 |
W1: |
3.0 |
| |
2T5020 |
|
20.0 |
32.25 |
91 |
G1: |
1.25 |
| |
2T5024 |
|
24.0 |
36.25 |
101 |
W2: |
3.0 |
| |
2T5028 |
|
28.0 |
40.25 |
111 |
G2: |
1.25 |
| |
2T5030 |
|
30.0 |
42.25 |
116 |
Piston Width: |
app. 1.35 |
| |
2T5036 |
|
36.0 |
48.25 |
132 |
Gland Width: |
app. 2.5 |
| |
2T5048 |
|
48.0 |
60.25 |
162 |
|
|
| |
2T5016-ASAE |
|
16.0 |
31.5 |
86 |
|
|
| |
|
! WARNING |
|
☆
Customized sizes and colors are available on request |
☆
Please
note that the max capacities of clevis pins are |
|
☆
Cylinder weight is for reference |
PIN DIA.: 1.0￣ = 26000Lbs PIN DIA.: 1.25￣ = 39000Lbs |
| |
|
|
PIN DIA.:
1.5￣ = 56000Lbs PIN DIA.: 2.0￣ = 96000Lbs |
|
☆
Delivery (exwork) for
first order: 4~6weeks |
☆ Max
extension pressure shall be lower than full MAX
pressure |
|
☆
Delivery (exwork) for
repeated order: 2~4weeks |
as stroke become longer |
